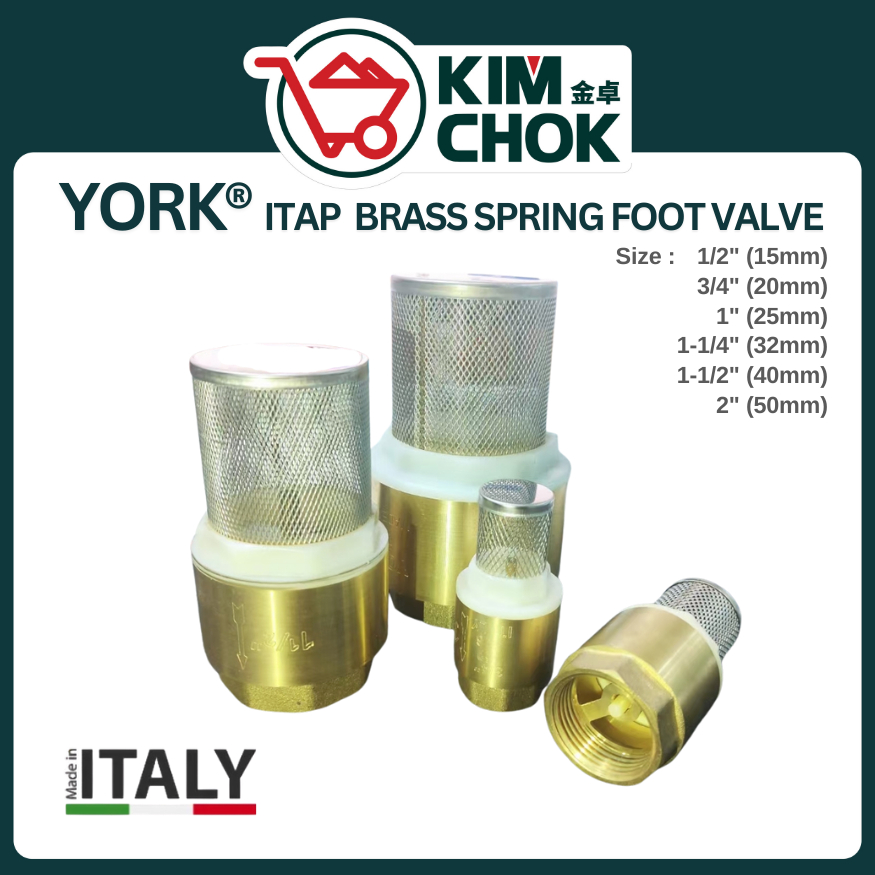

YORK® ITAP Brass Spring Foot Valve Heavy Duty ( Made in Italy )

The Brass Foot Valve and Strainer ensures that the fuel being drawn up by the pump is free from any large particles that could damage the pumping system.

Specifications:
- Body in brass.
- Plate in polymer.
- Washer in NBR.
- Spring in stainless steel.
- Strainer in polymer and stainless steel.
- Filtration degree: 3/8” through 2”: 1200µm; 2”1/2 through 4”: 2000µm.
- Minimum and maximum working temperatures: -20°C, 100°C.
- Threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)

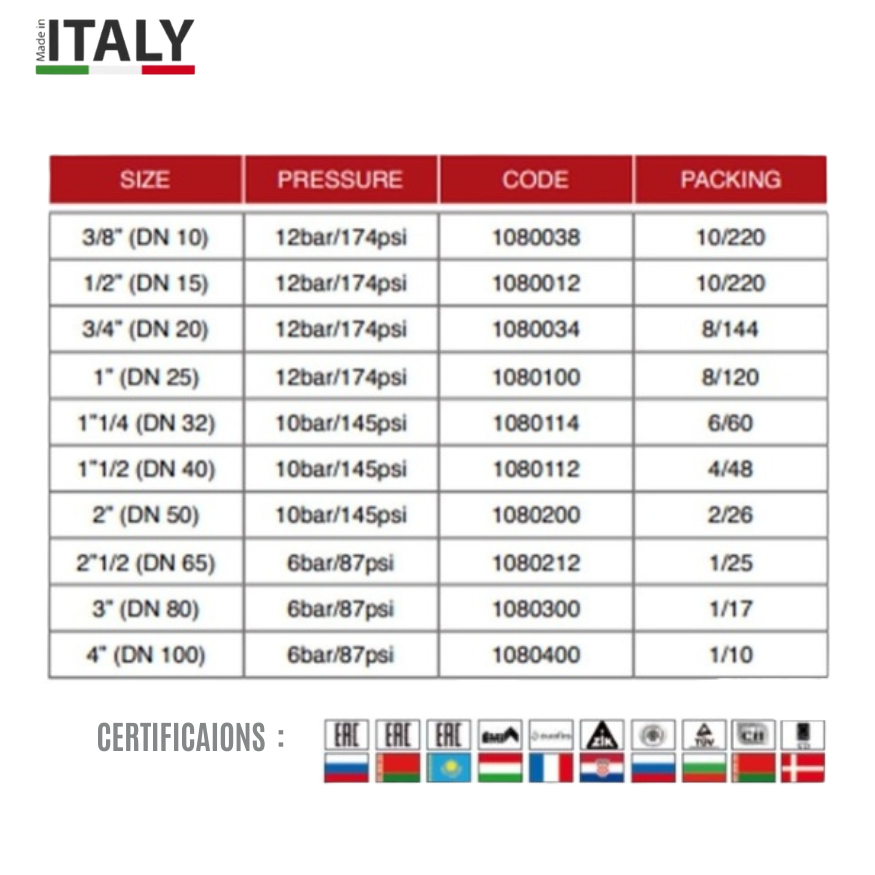

Size:
- 1/2" (15mm)
- 3/4" (20mm)
- 1" (25mm)
- 1-1/4" (32mm)
- 1-1/2" (40mm)
- 2" (50mm)
