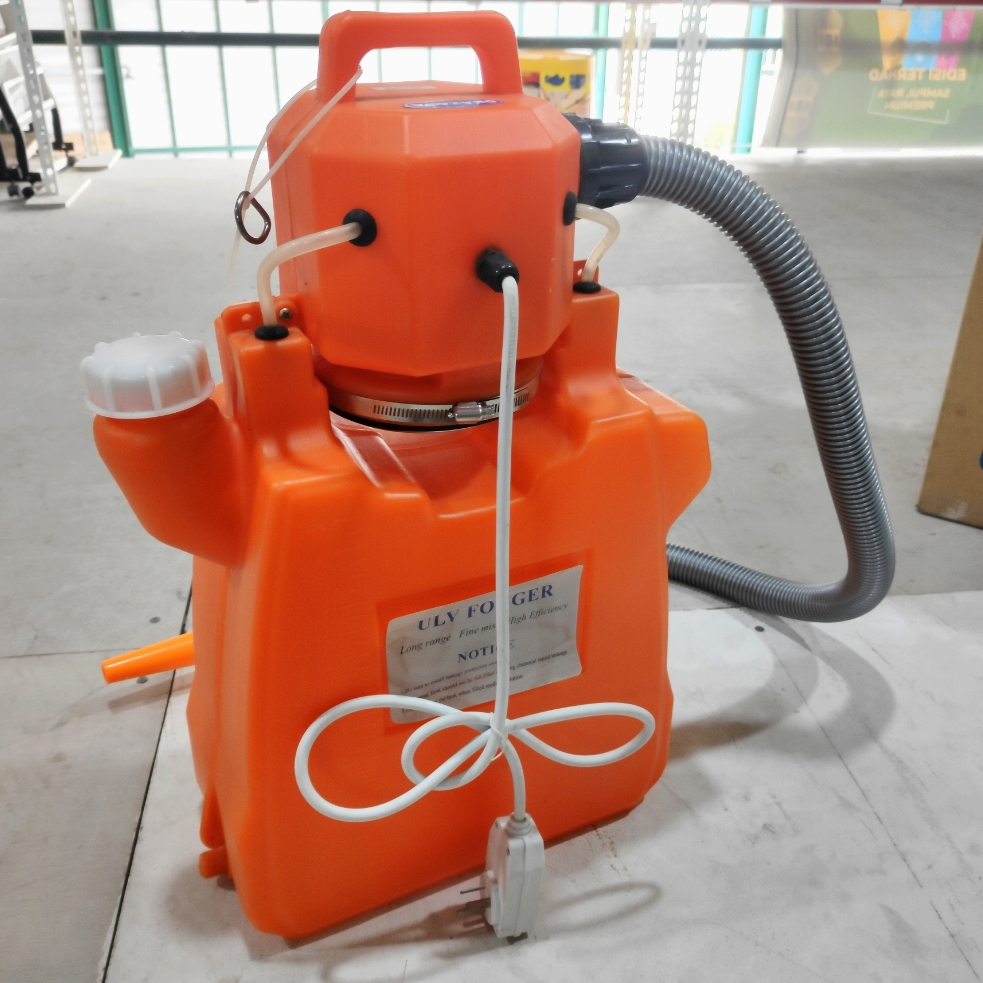

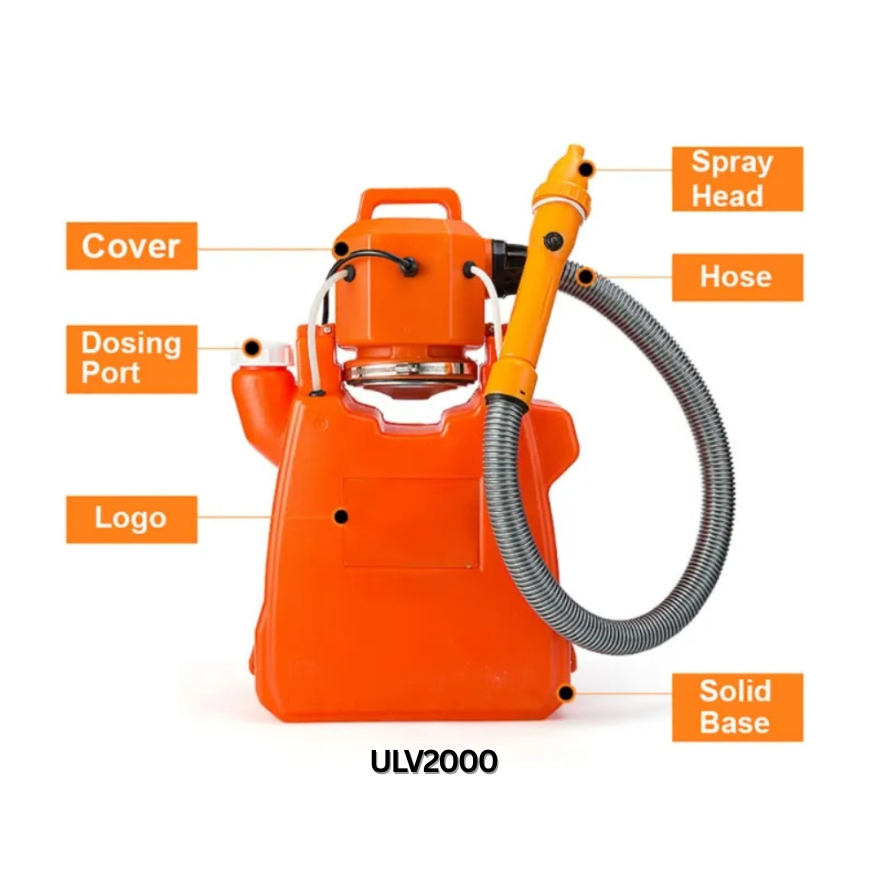

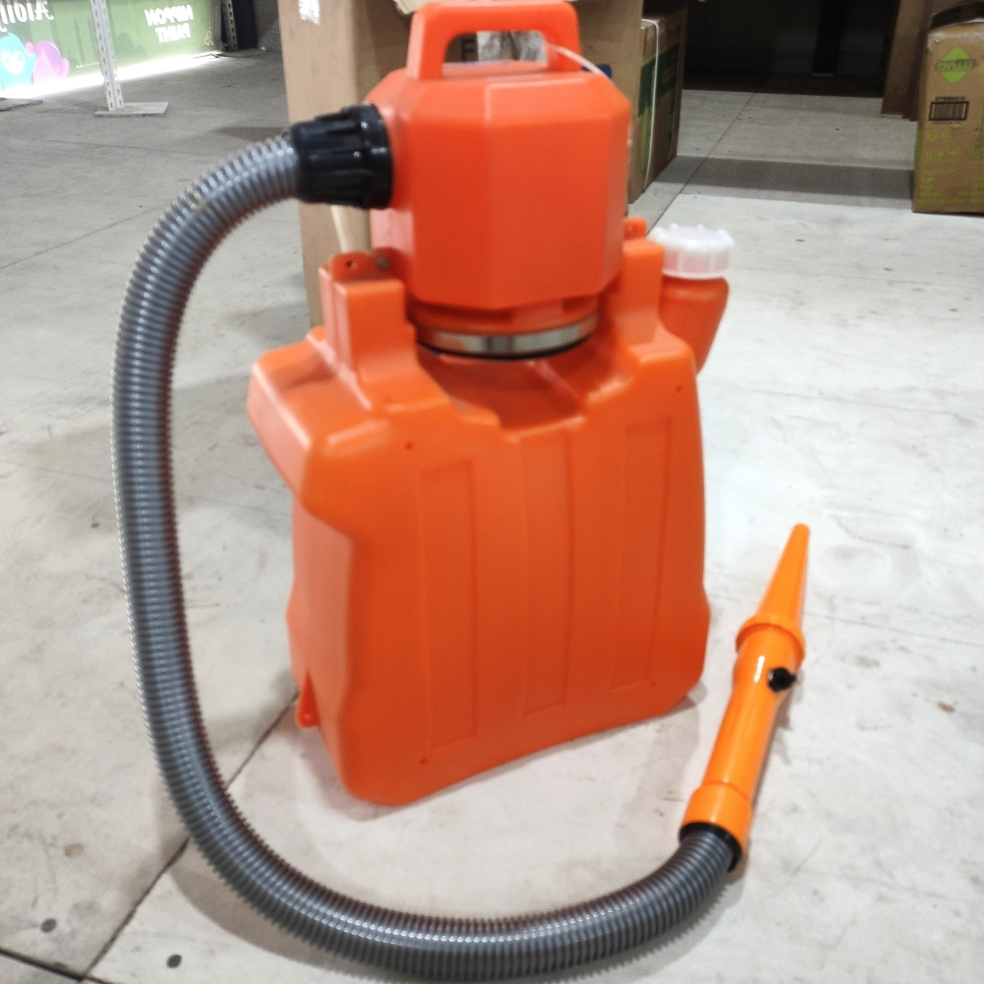

Display Set - ULV2000 Electric Fogger Sprayer Fogging Machine

Miaintenance
1. Periodically clean the formulation tank using a hot water/detergent solution. Fully open the machine valve and operate the machine for 3 to 5 minutes, flushing the solution through the valve, lines and nozzle.
2. Examine the electrical cord for evidence of damage and replace any damaged cord immediately
3. After 400-500 hours of operation, carefully remove the blower assembly and examine the brushes and the commutator bars of the blower motor. lf brushes are worn out, replace them, if commutator bars are damaged, replace Blower Assembly.

Specifications:
Model : ULV2000
Tank Capacity : 20L
Input Power : 110V-220V
Rotate : 7200Rpm
Flow Rate (MAX) : 0.3L/Minute
Drople Size : 5-20 Microns
Horizontal Rage : 10 Metres
Dimension (cm) : 43 x 25 x 62
Gross Weight : 5.15Kg
Net Weight : 4.5Kg
Power : 2.2KW
